Residential Garage Roller Door Opener , Garage Roller Door Opener With Remote Control

Brand Name : ZT

Model Number : ZTRD

Certification : CE

Place of Origin : CHINA

MOQ : Negotiation

Payment Terms : T/T

Supply Ability : 30000 sets per month

Price : Negotiable

Name : Garage Roller Door Opener

Material : Plastic, metal

Color : Red, grey

Function : operate Australian rolling up door

remote control code : rolling code

Frequency : 433.92MHZ

Contact Now

Residential Garage Roller Door Opener , Garage Roller Door Opener With Remote Control

roller garage door opener Features

1. Soft start and soft stop
2. Electronic limit setting provides precise door travel control.
3. Automatically reverse when door obstructed
4. Emergency manual release handle
5. Remote rolling code 433.92Mhz
6. Wi-Fi module is available to control rolling shutter by APP

Parameters

Rolling door opener
TECHNICAL SPECIFICATION
INPUT VOLTAGE :
	(110V AC 60Hz available on request)
	Single Phase
	Current Required	1Amp
TRANSFORMER SPEC.:	Primary Voltage	230/240V AC
	Secondary Voltage	24V AC/100VA
MOTOR SPEC.:	Motor Type	PermanentMagnet D.C.Motor
	Voltage	24V DC
	Torque	150kg cm at 4 Amps

CONTROL BOARD SPEC.:	Relay Contact Rating	12Amp/30V DC
	Relay Coil Voltage	24V DC
	Control Board Voltage	24V DC 5 Watts
Receiver SPEC.:	Receiver Type	FSK AM
	RE Frequency	433.92MHz
	Code Storage Capacity	20 Different Codes
	Control Distance	>50m
TRANSMITTER SPEC.:	Carrier Frequency	433.92MHz
	Current Consumption	50mA(approx)
	Battery Voltage	12 Volts
	Coding Format	Rolling Code(7.38x1019Code Combinations)
OPENER LIFTING CAPACITY : 50kg

Residential Garage Roller Door Opener , Garage Roller Door Opener With Remote Control

Product Tags:

garage roller door opener

residential garage door opener

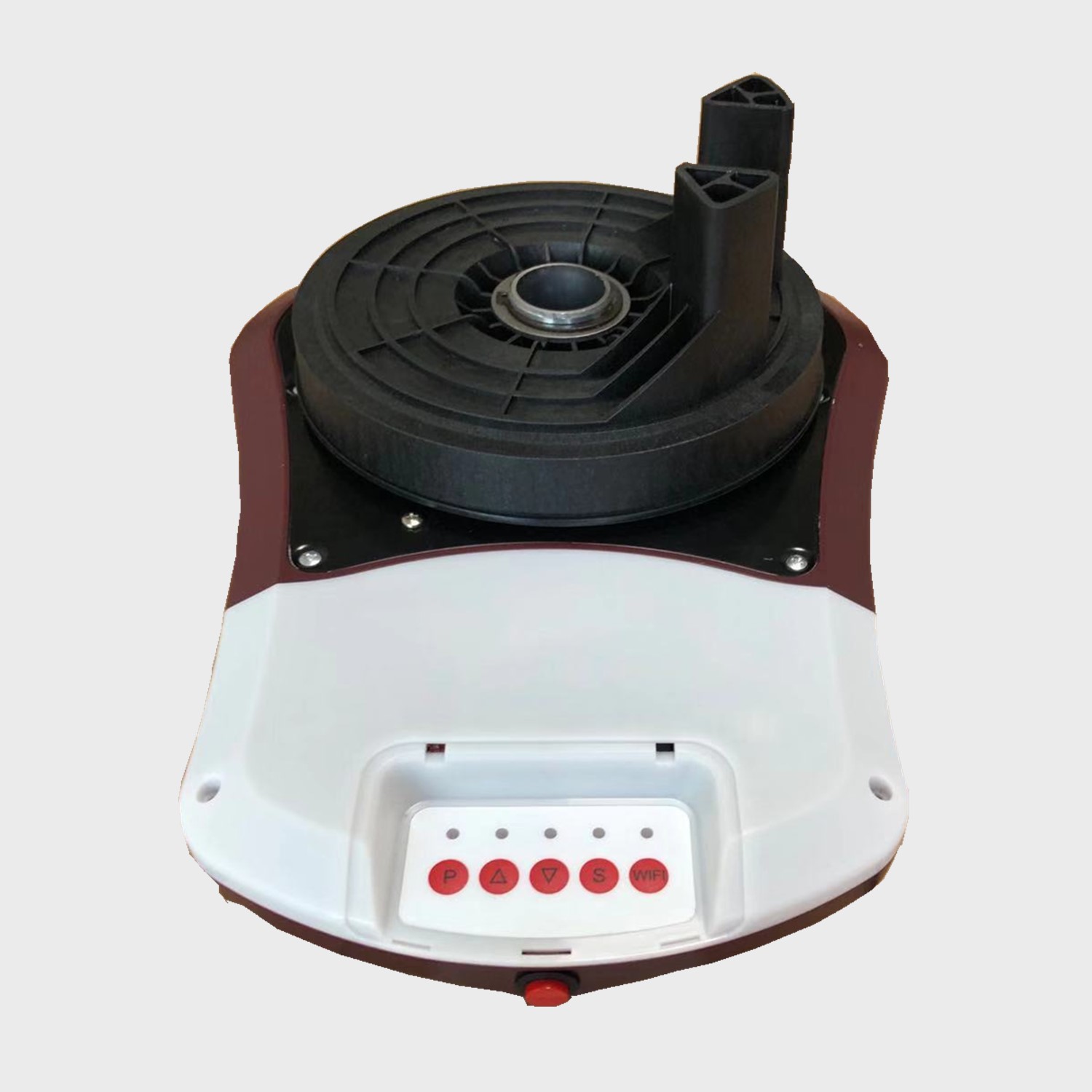

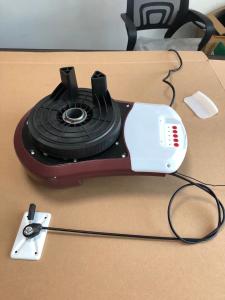

Residential Garage Roller Door Opener , Garage Roller Door Opener With Remote Control Images
